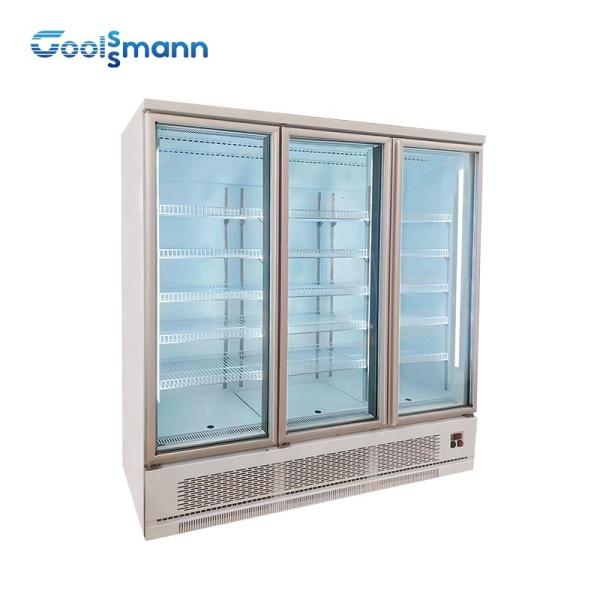

Double - Glazed Glass Door Fridge Freezer , LED Drink Display
Fridge
Product Description
1. Electronic Heating Double-glazed Hollow Glass Door ,Prevent
fogging.
2. High-efficiency compressor and fan motor ,more eco-friendly and
energy saving;Electronic controller , precise temp control.
3. Grid baffles and music punch baffles are optional.
4. fans,cold air circulation is strongly forced by fan to enable
quick refrigeration effect and balanced temperature .
5. High efficiency brand compressor with R290 refrigerant.
6. One-piece foaming, energy efficient.
7. High production capacity and fast delivery.
8. The LED light bar is on the door frame, which will be a better
display of the price tag.
9. 5-layer plate, can be customized sheet metal/grid/separable
beverage special, large internal space, spacious display area.
10. The domestic high efficiency compressor meets the demand of the
product in the cooling capacity. Noise is controlled at 55
decibels. Solve the problem of loud noise of the whole machine.
11. New LED lighting, 6500k white light display, space without dead
corners, product display effect is outstanding.
12. The air speed and air volume in the cabinet are more uniform,
and the insulation layer is 50MM, which prevents the loss of cold
capacity, improves the cooling capacity and ensures the
comprehensive energy consumption ratio of the product.
Specifications
| Lower front hood color | customizable |
| shelf | Flat plate grid/separable beverage special grid plate/sheet metal
plate |
| footing | Footing/wheels |
| compressor | Secorp |
| Temperature controller | Elf |
| Evaporating fan | EBM |
| evaporator | North Peak |
| Condensing fan | EBM |
| condenser | Copper/iron condenser (optional) |
| Glass door style | A/B/C options are available |
| Glass door | Double insulating glass door (door body heating) |
| board | Baosteel no flower |
| Product model | CXIC3D |
| Effective volume | 1260L |
| Display area | 2.3m² |
| Product dimensions | 1875*700*2000(三门) |
| Product package size | 2025*850*2200(三门) |
| Net weight | 230kg |
| Gross weight | 245kg |
| Total input power | 797W901W |
| refrigerant | R290/R404a |
| Amount of refrigerant to be charged | 150g/400g |
| Model | Size(mm) | Volume/L | ℃ |
| CXIC1D | 680*700*2000 | 360 | ‐2~4 |
| CXIC2D | 1250*700*2000 | 810 | ‐2~4 |
| CXIC3D | 1875*700*2000 | 1260 | ‐2~4 |
| CXIC4D | 2500*700*2000 | 1700 | ‐2~4 |
Detailed Photos
