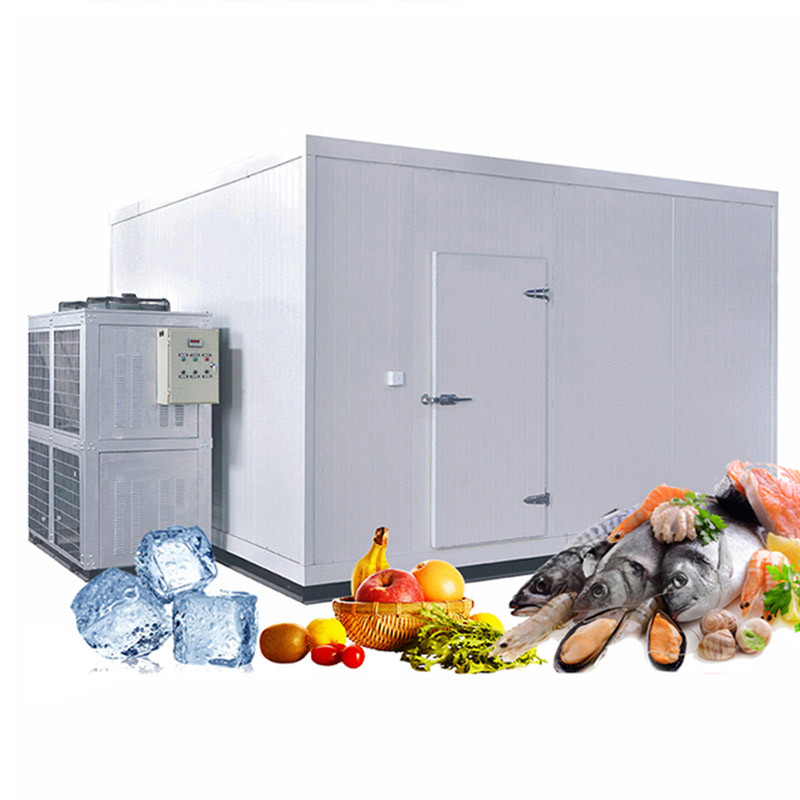

Customized High And Low Temperature Walk-In Refrigeration Room
Product Features
1. Doors with safety locks can be opened from inside
2. Fully computerized control system, automatic control
3. Assembled, easy to transport and install, detachable, easy to
fix and clean
4. High standard imported condenser, with uniform frost formation
and efficient defrosting
5. Polyurethane board is foamed under high pressure, with a density
of 38-42 kilograms/cubic meter.
6. Cold storage panel: fluorine free material, environmentally
friendly. It can reach fire rating B2.
7. Condensing unit: Fully automatic and high-precision digital
controller, with high efficiency and convenient use.
8. Cold storage doors: side hung doors, Sliding door, free doors
and other types of doors, according to your requirements.
Product Table
| Dimension | Length(m)*Width(m)*Height(m) |
| Panel thickness | 50/75/100/120/150/200mm |
| Material | Color steel/Stainless steel |
| Voltage | 220V/50Hz,220V/60Hz,380V/50Hz,380V/60Hz,440V/60Hz optional |
| Refrigeration type | Air cooled/Water cooled/Evaporation cooled |
| Type of door | Sliding door/Swing door/Double door |
| Functions | Fruit,vegetable,flower,fish,meat,chicken,medicine,etc |
Thickness parameter
| Use nature/Suitable for | Tempreture range |
| Processing room | 12~19℃ |
| Fruit, vegetable, dry food | -5~+10℃ |
| Medicine, cake, pastry, chemical material | 0C~-5℃ |
| Ice storage room | -5~-10℃ |
| Fish, meat storage | -18~-25℃ |
Product Details Selling Points
1.Stainless steel doors with low risk of corrosion, excellent
sealing and thermal insulation
2.Evaporator composed by Aluminum - fin and copper tube , high
efficiency, perfect power exchange.
3.Intelligent temperature control, flexible configuration
